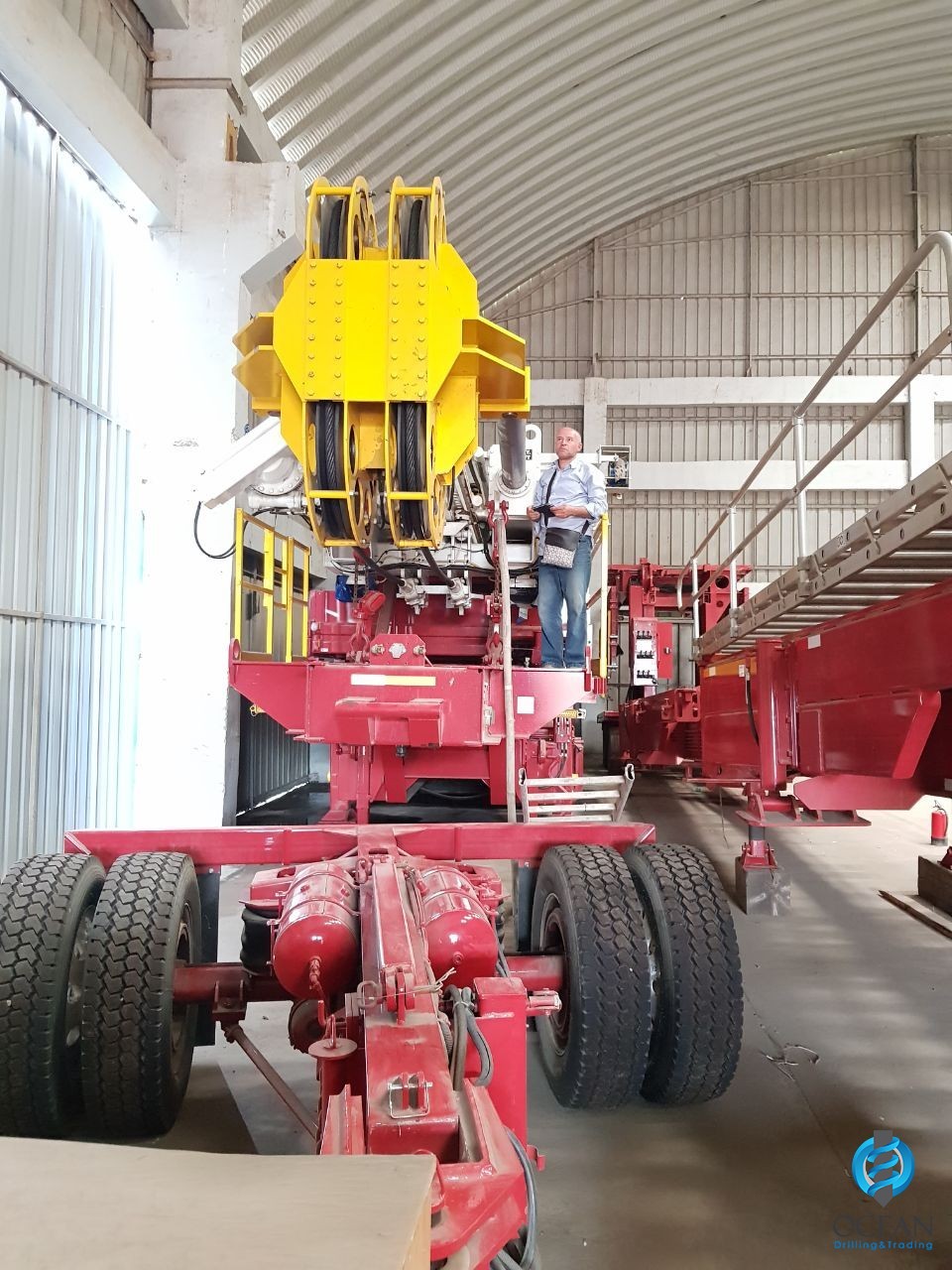

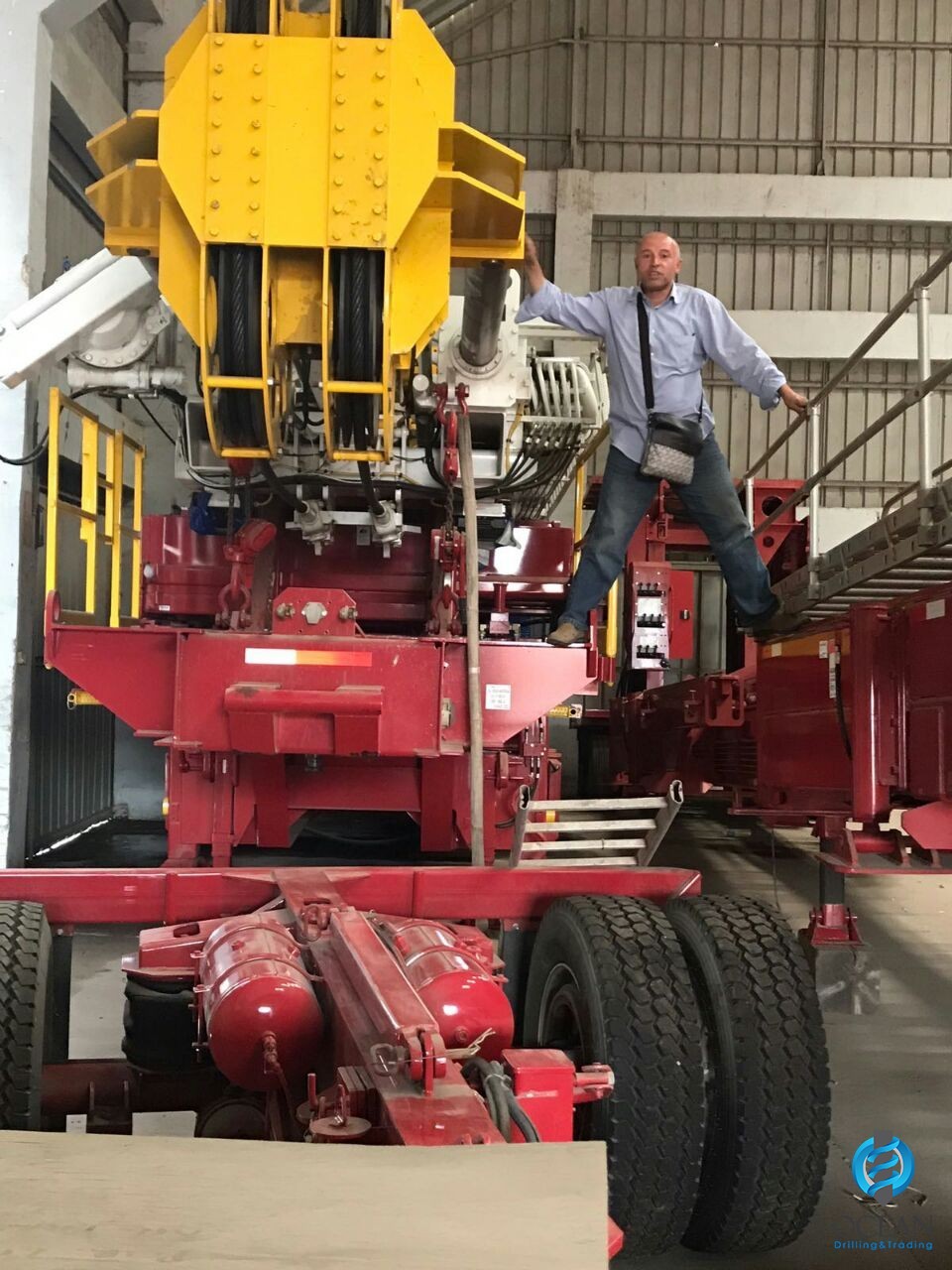

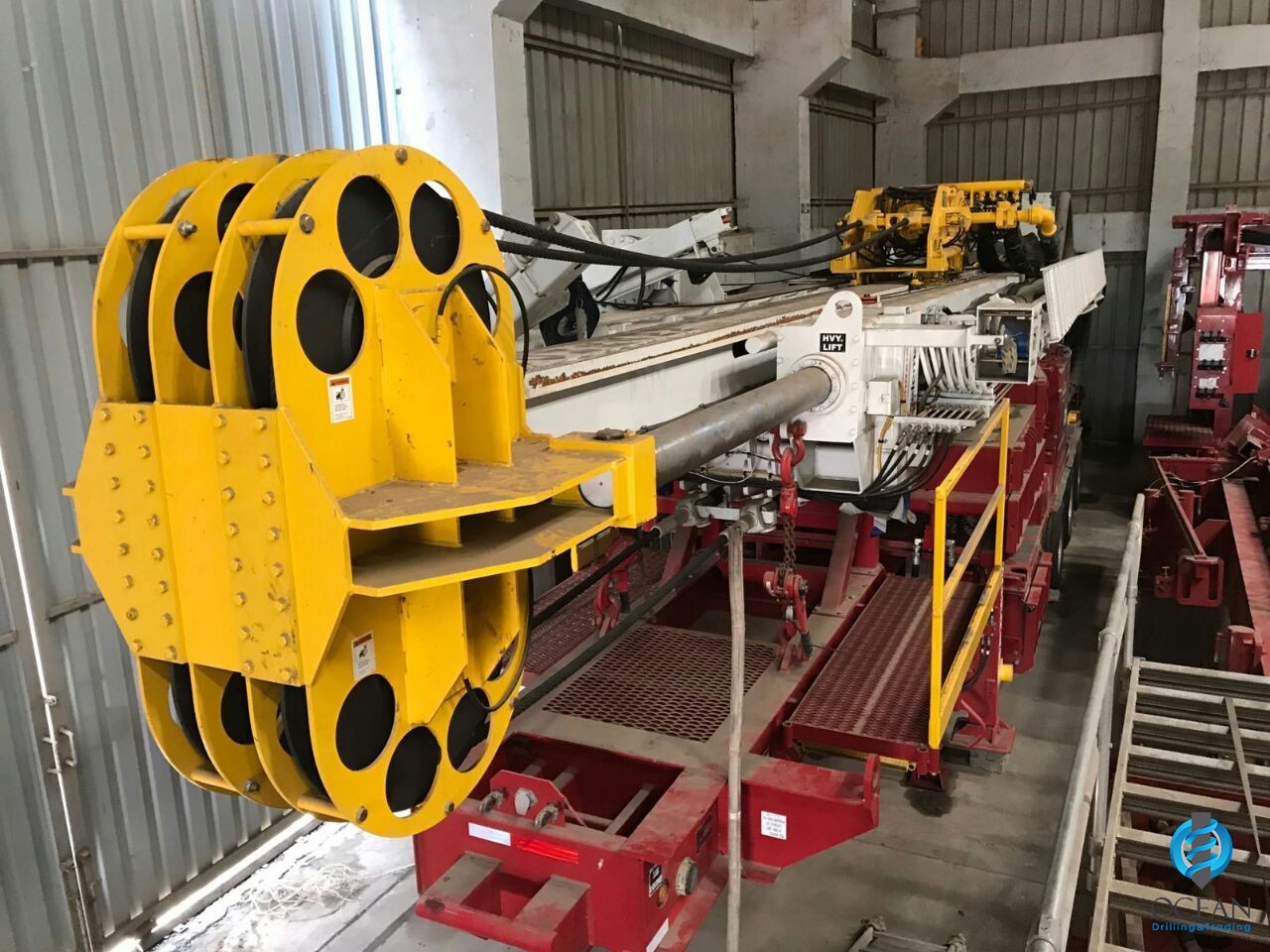

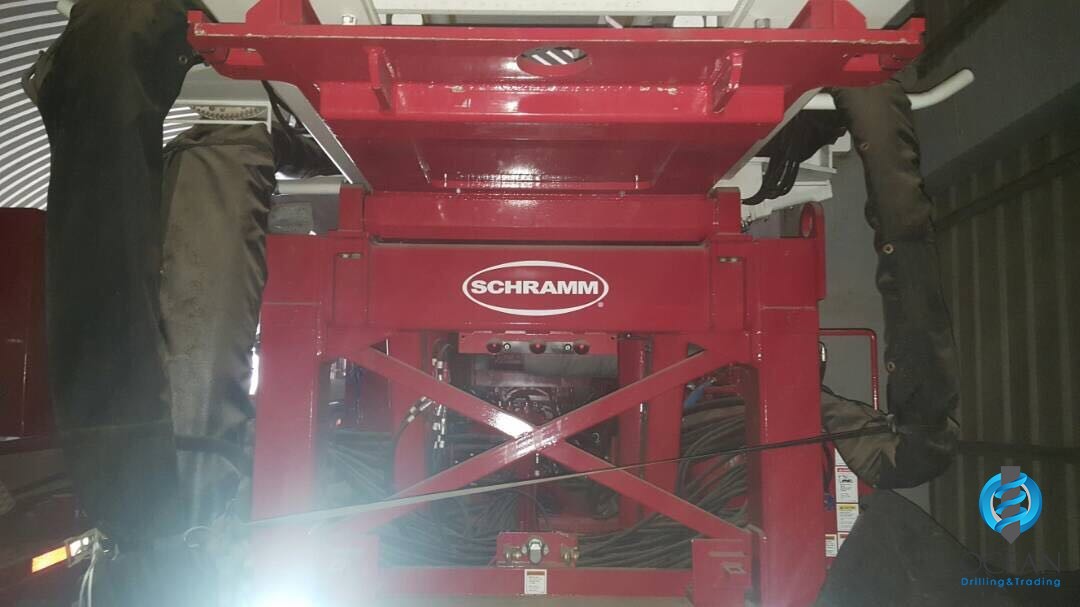

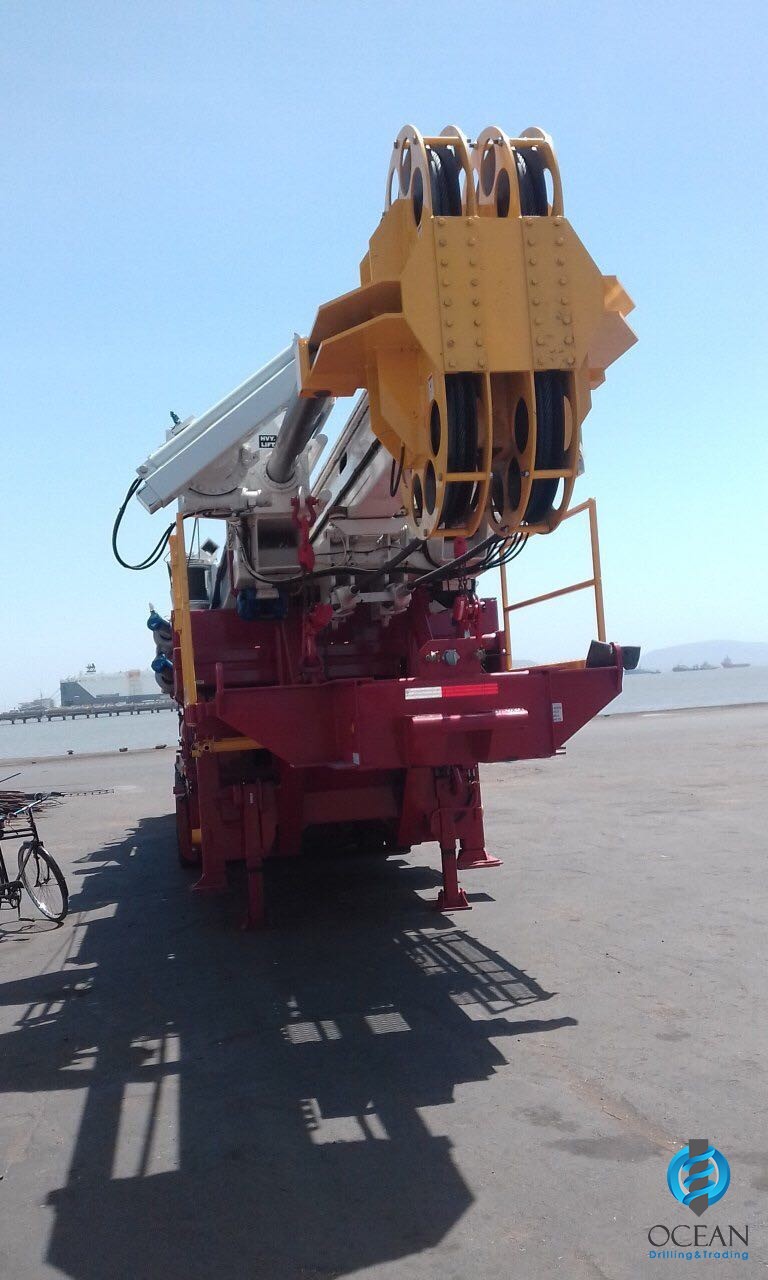

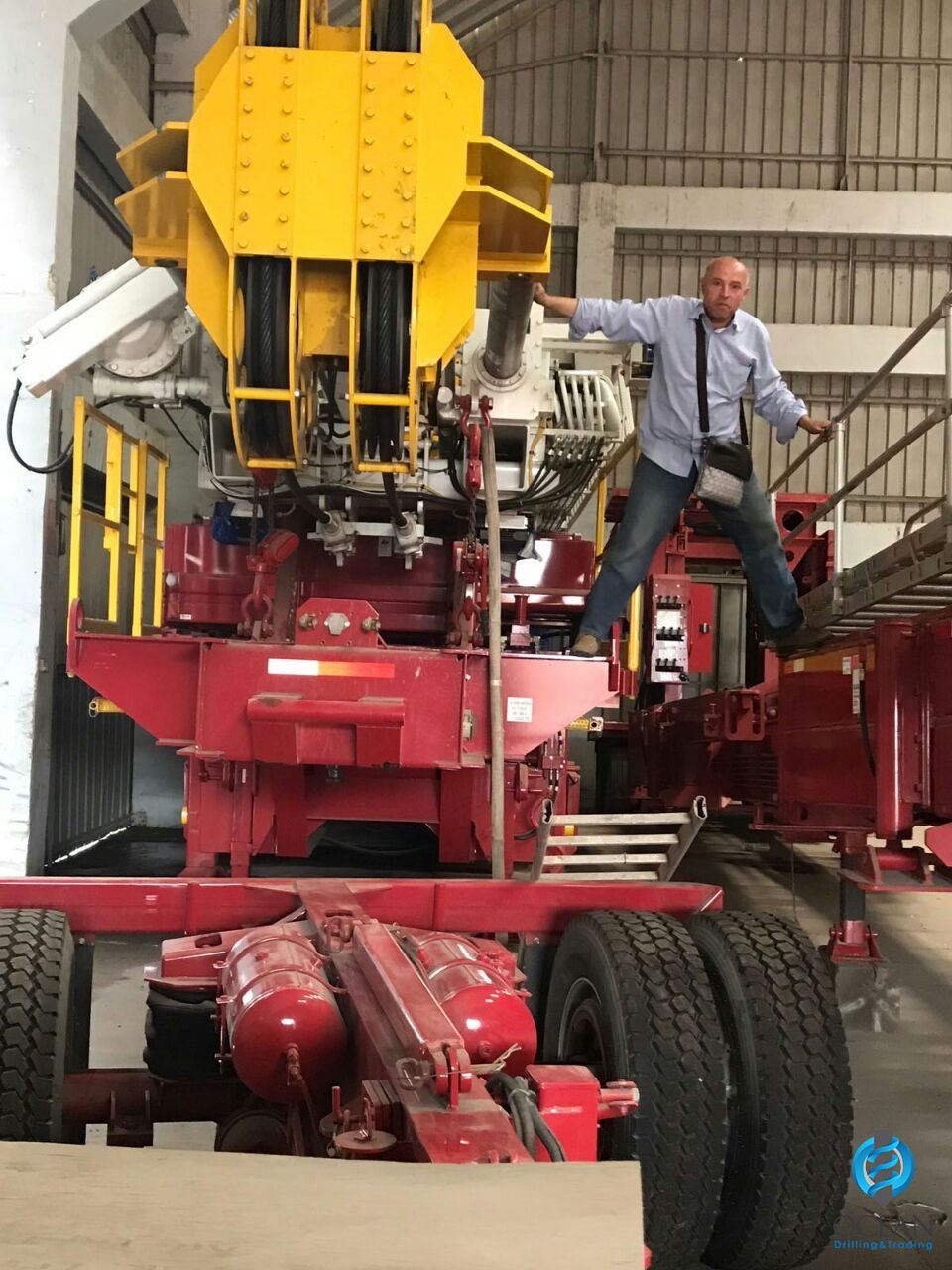

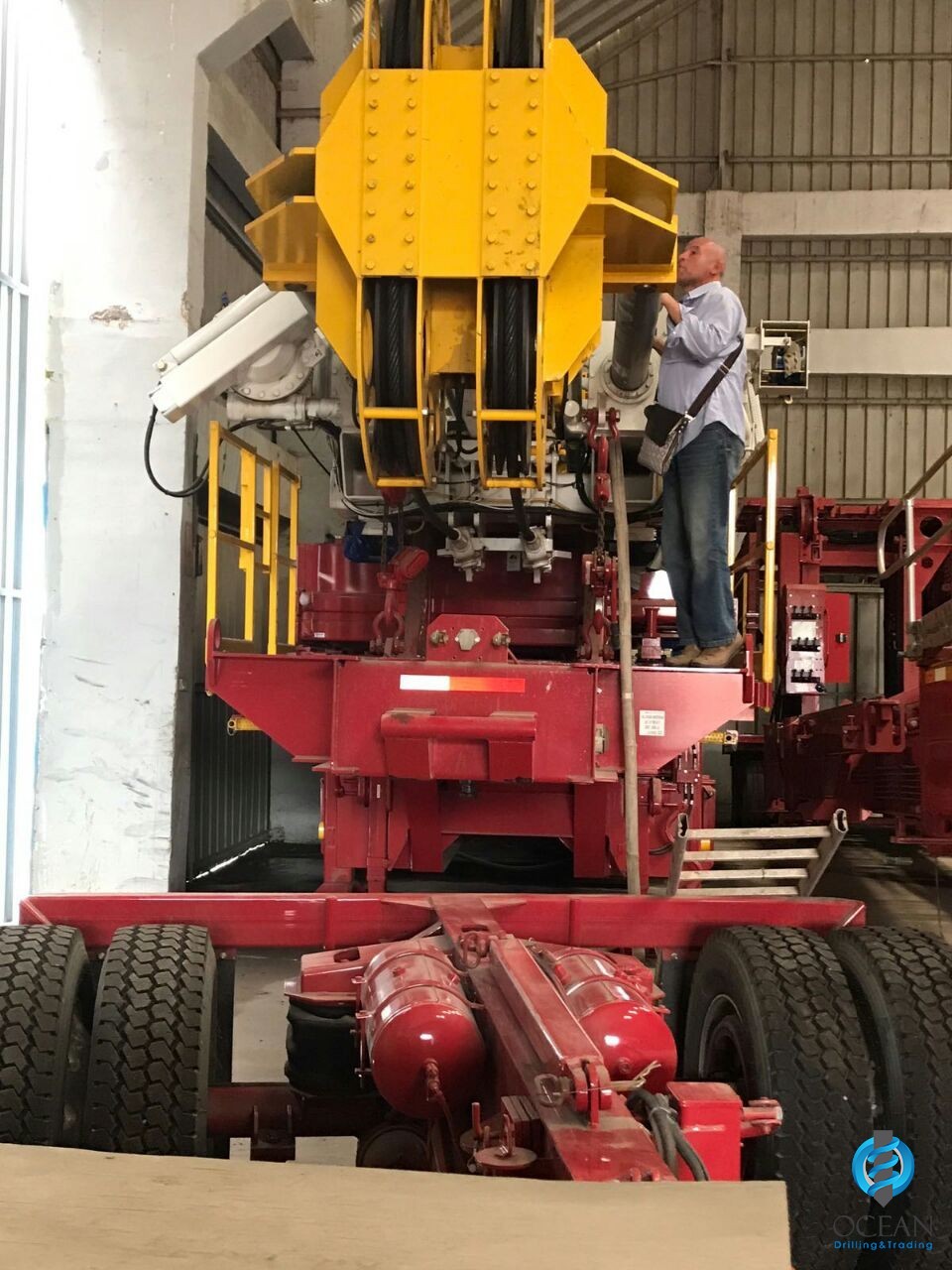

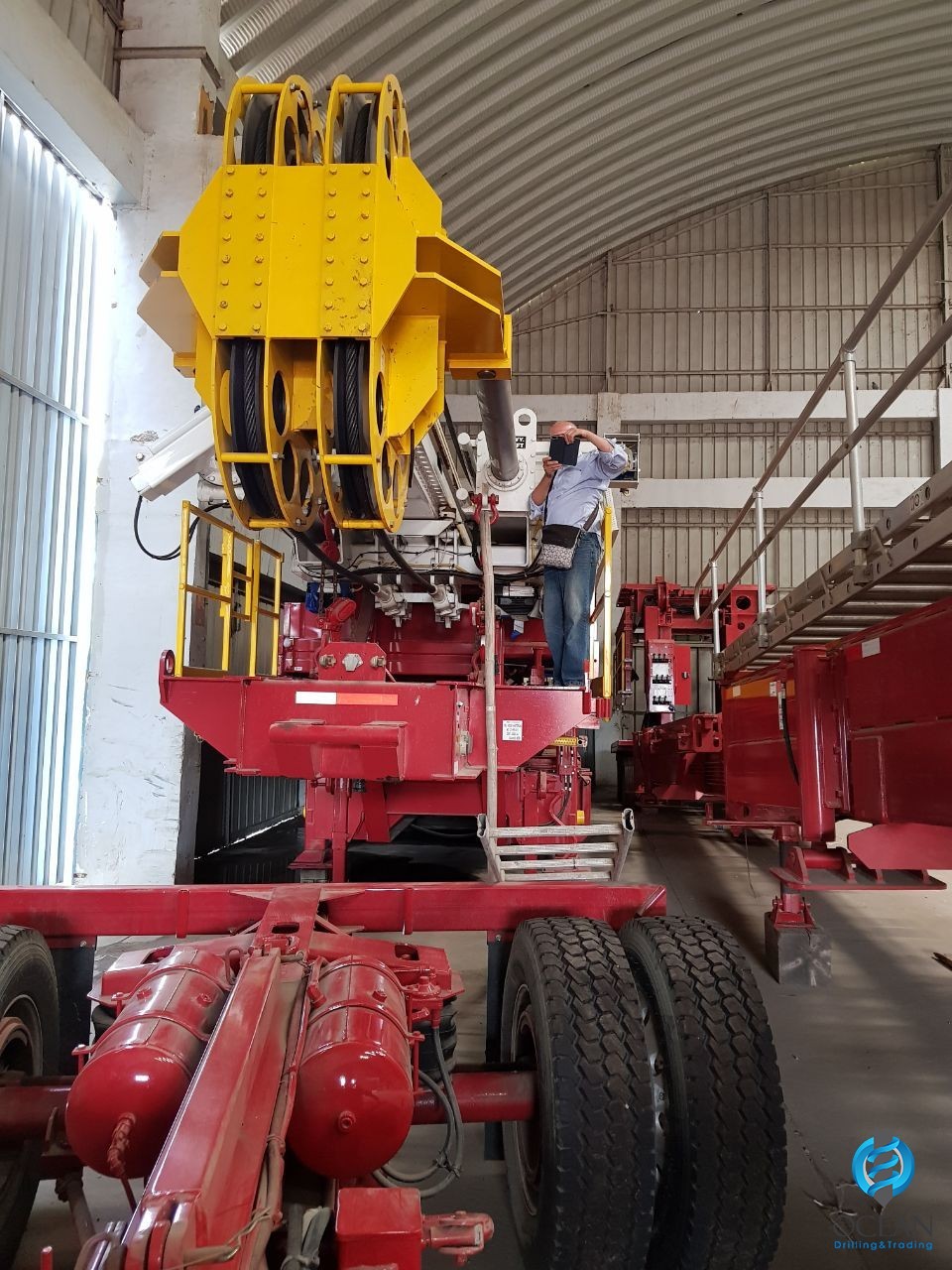

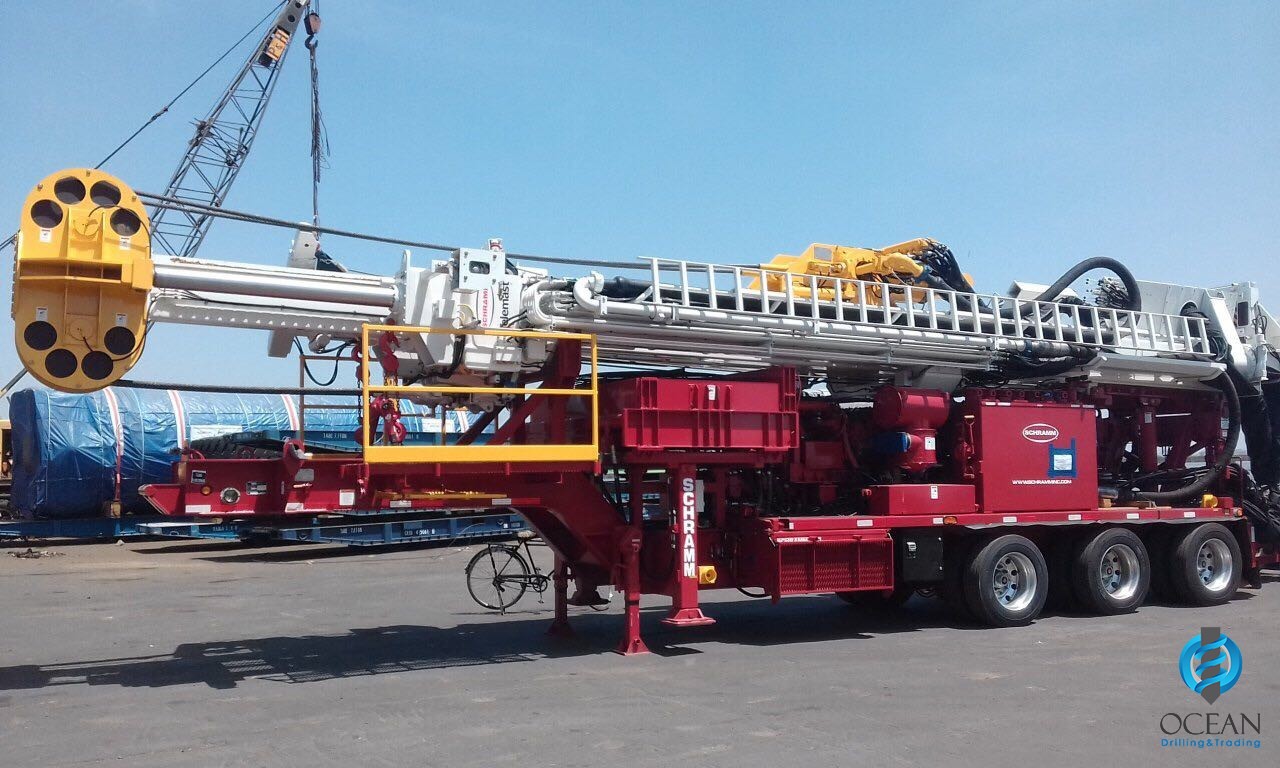

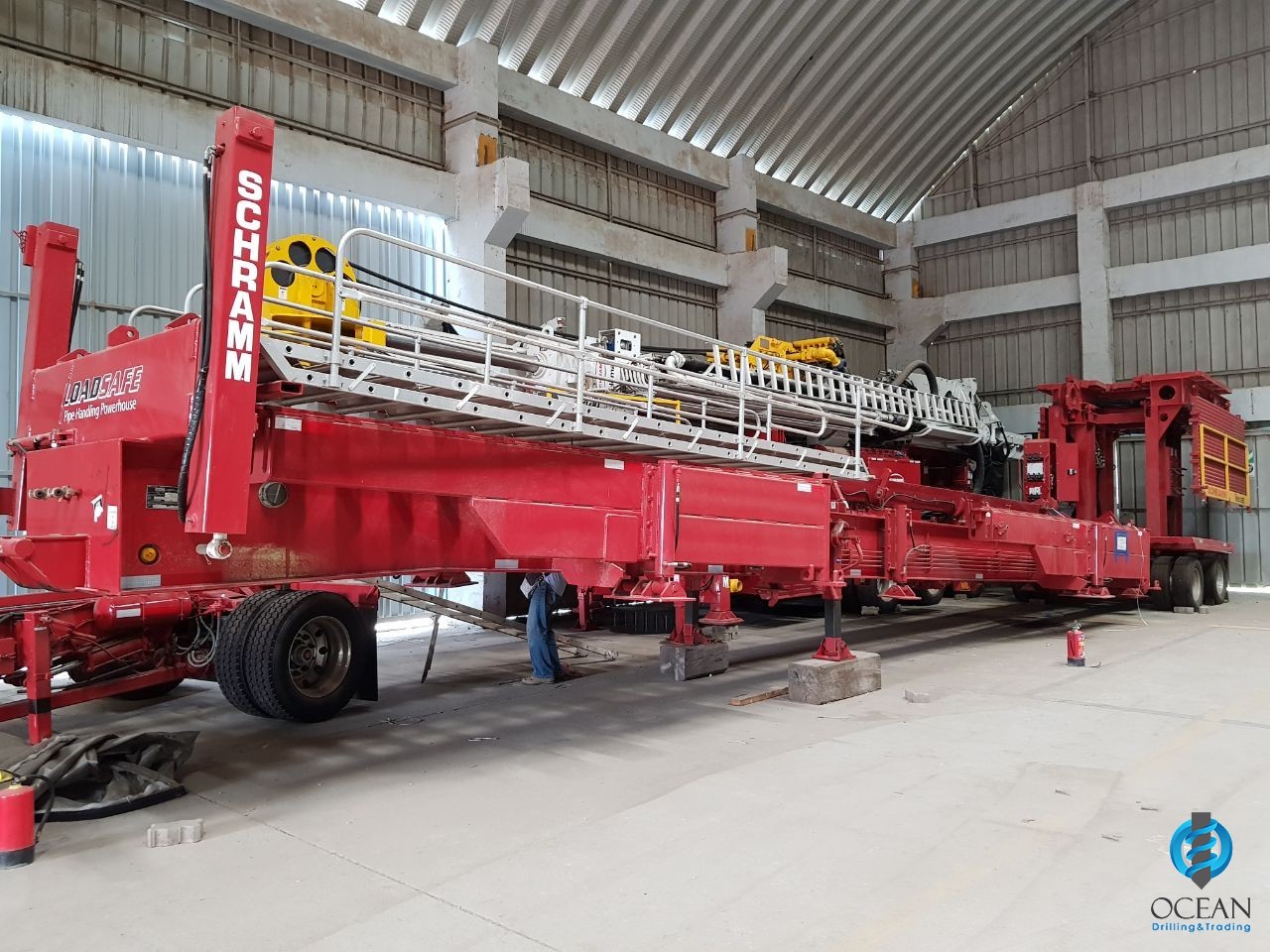

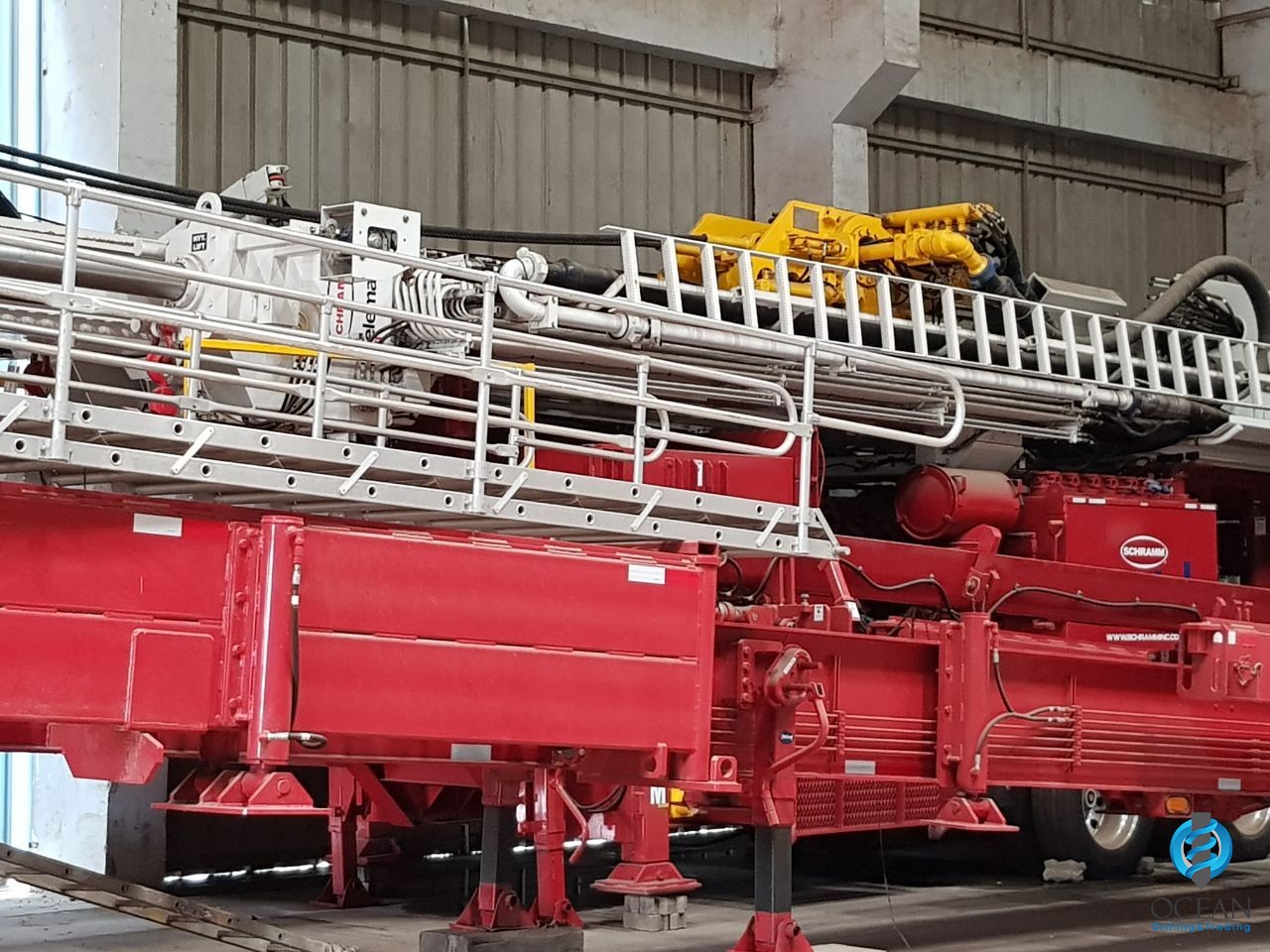

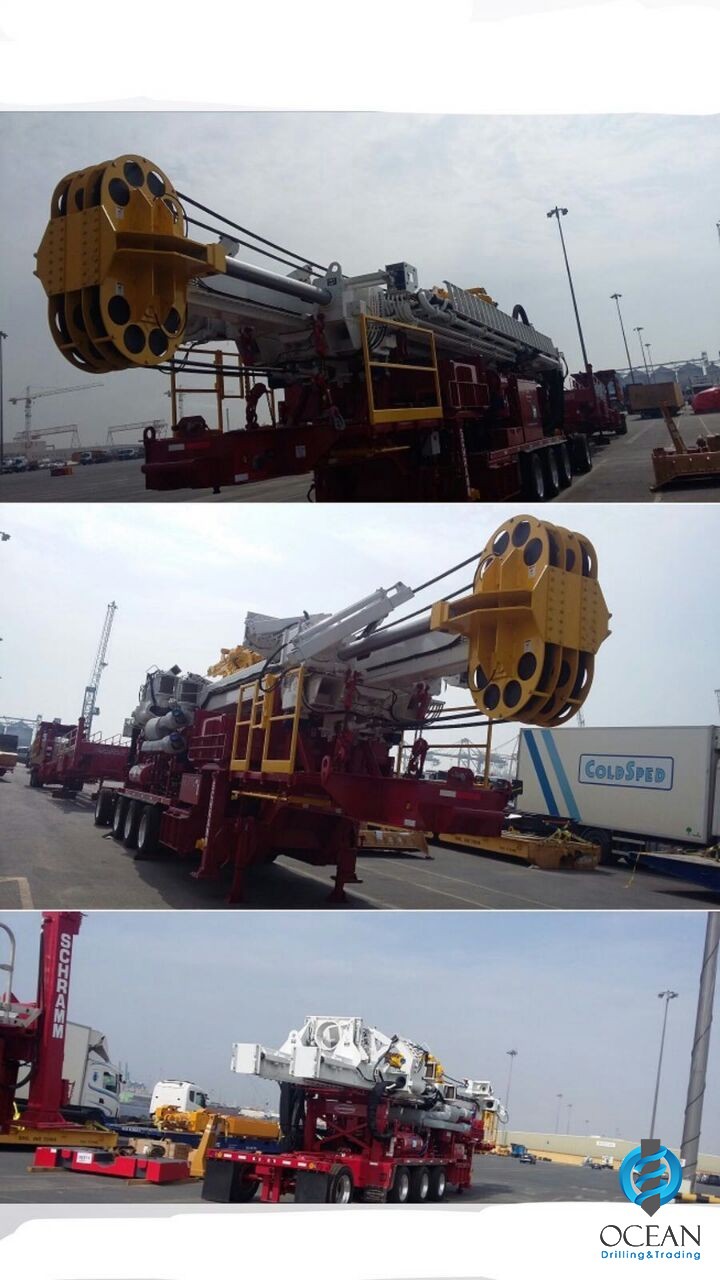

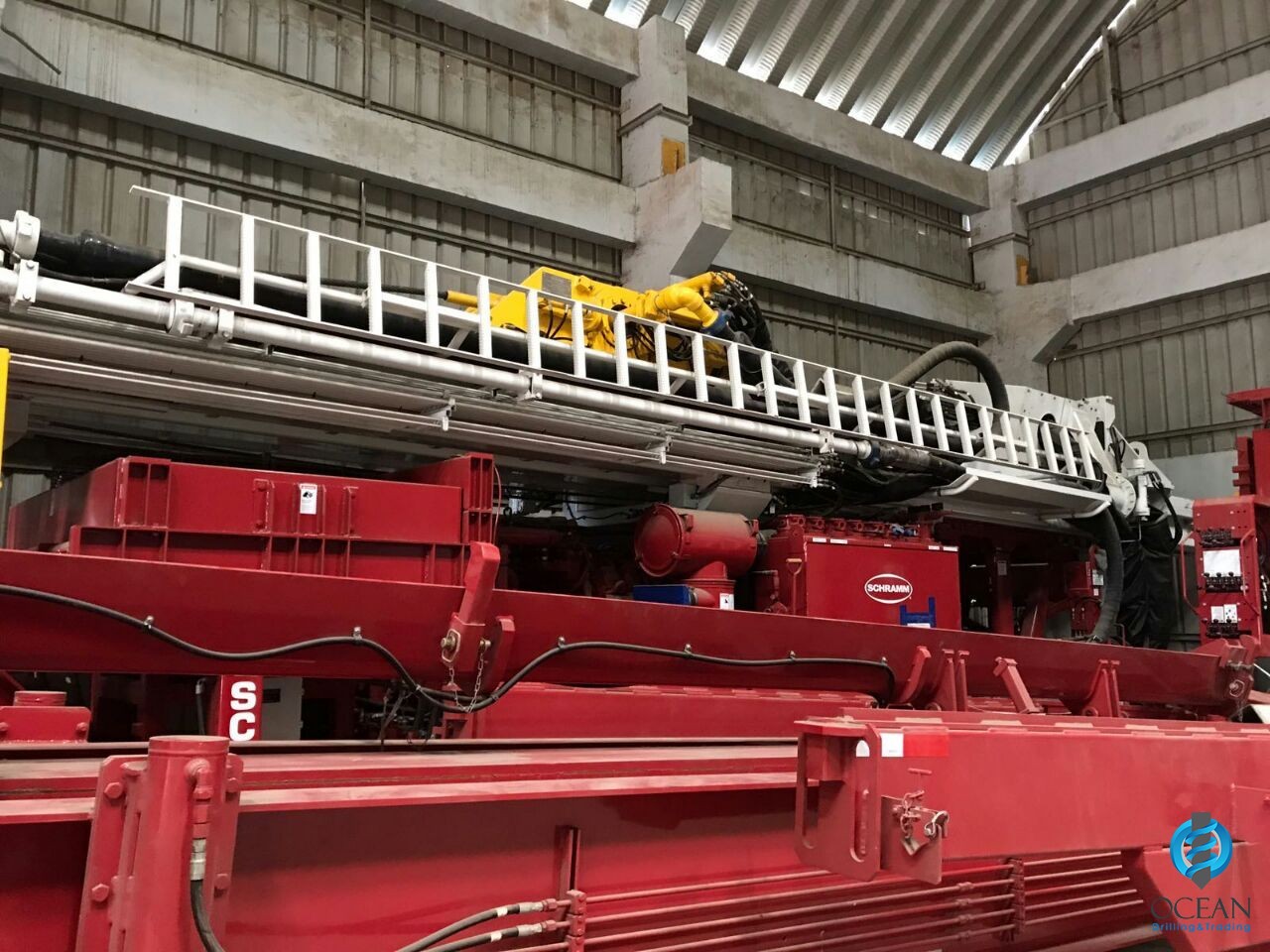

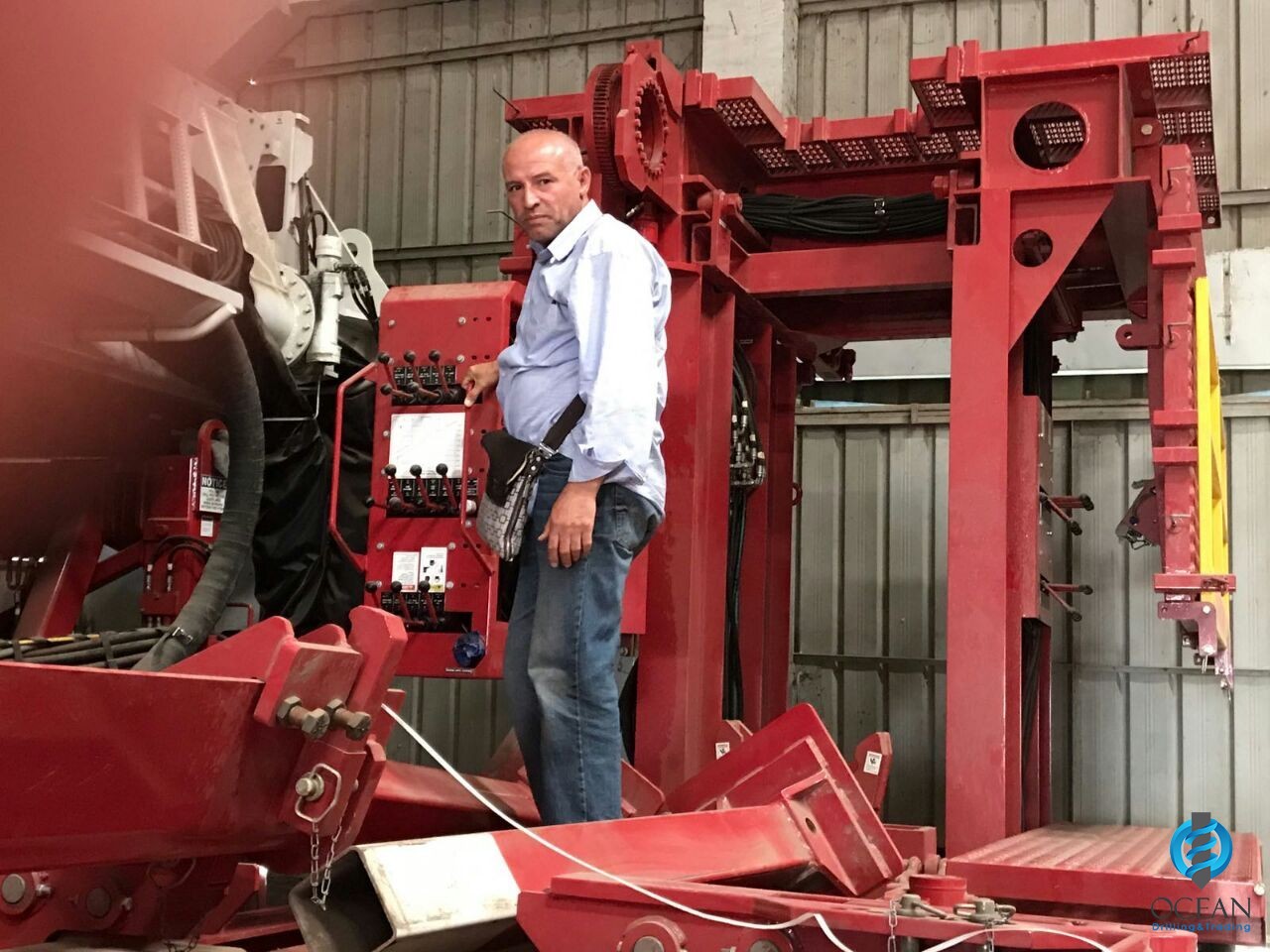

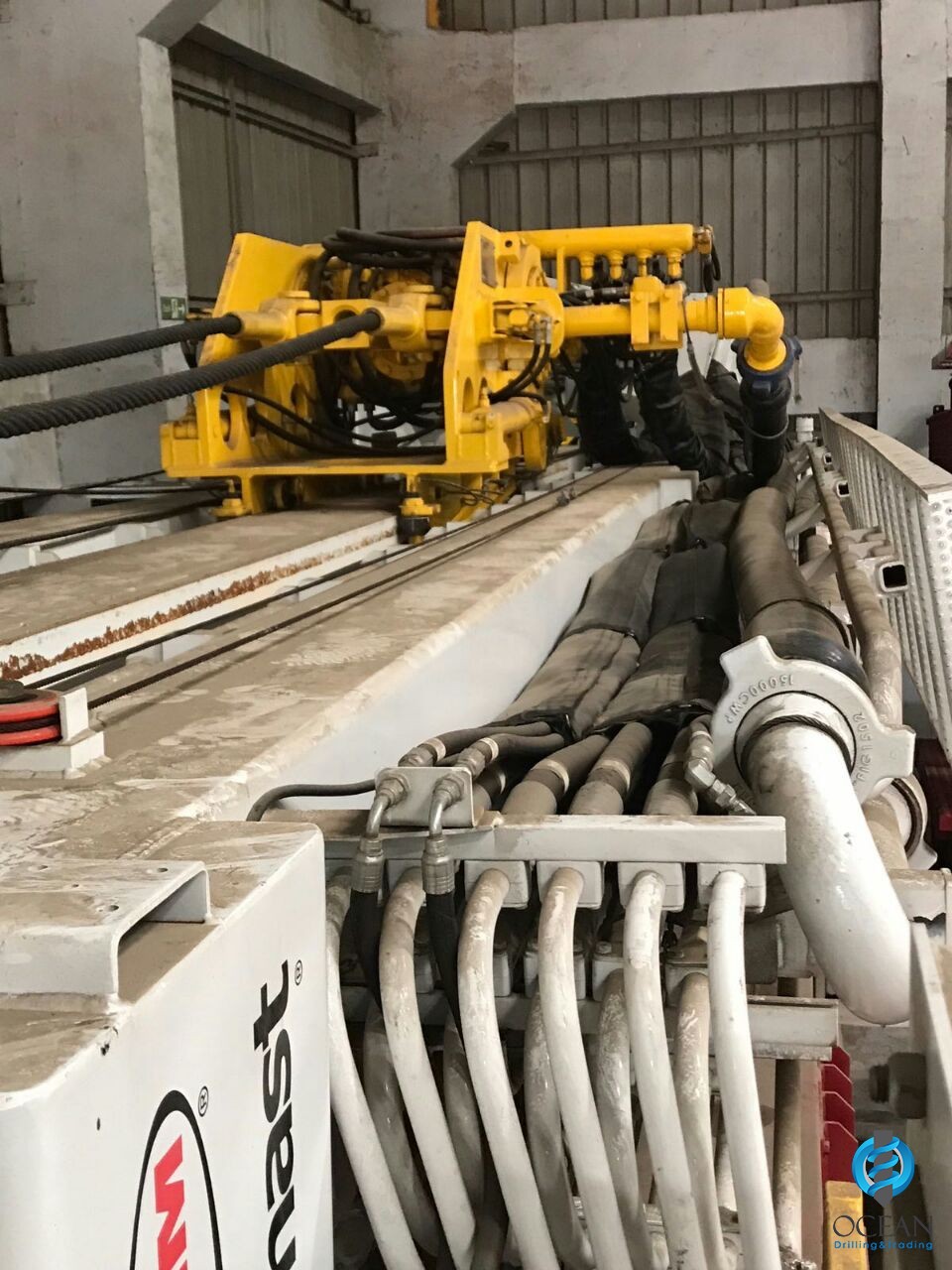

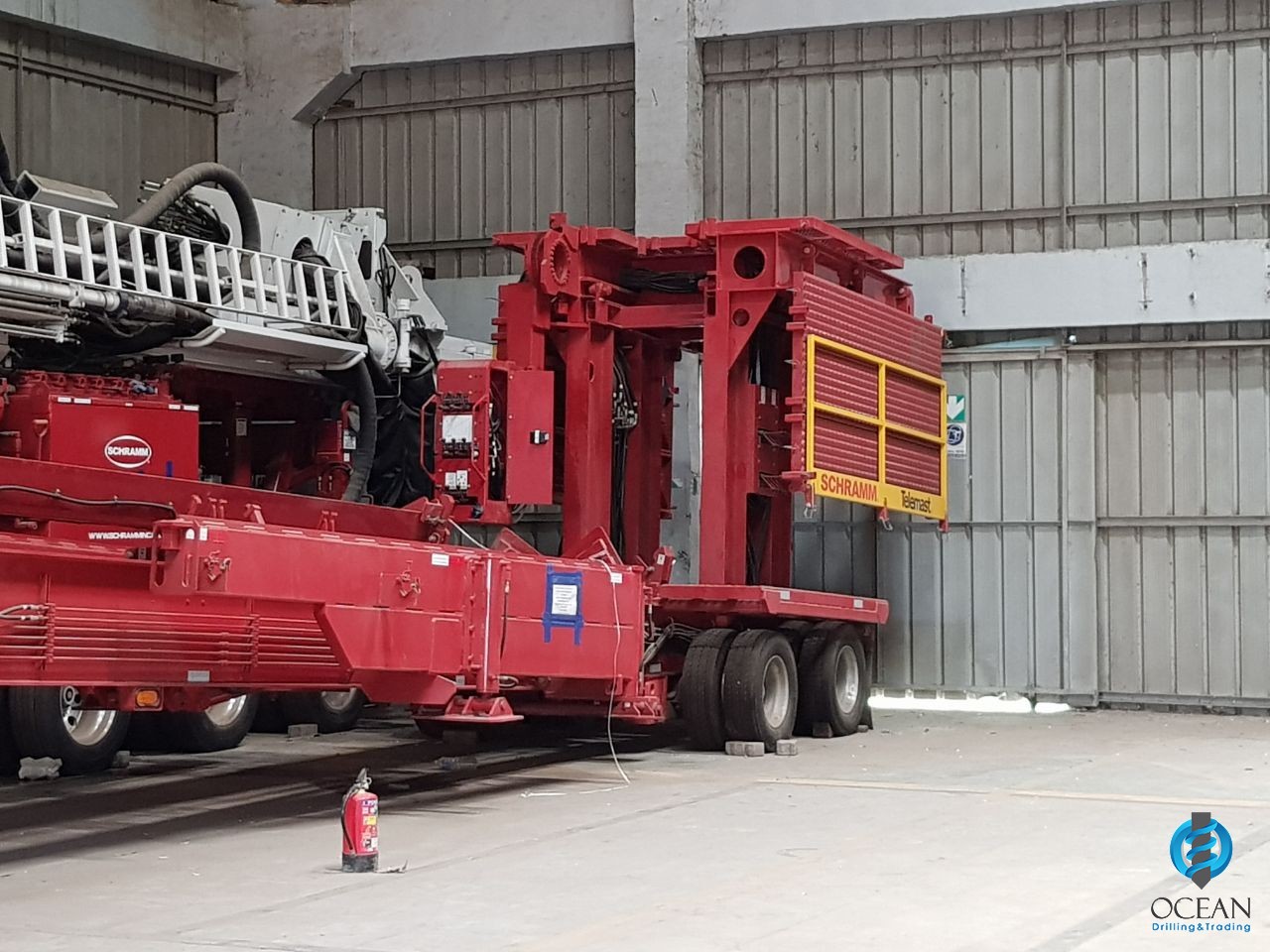

2017 Schramm TXD200 Drill Rig

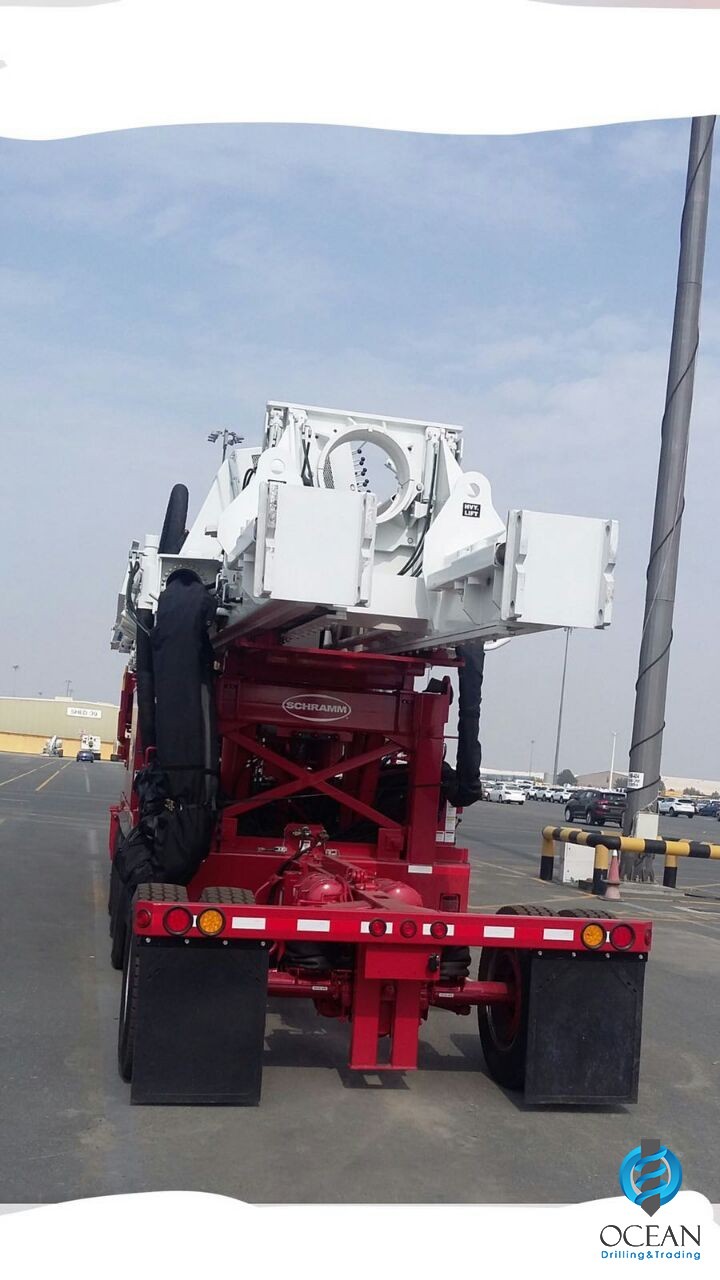

Mounted on a 3 axle Trailer
Detroit DDC/MTU 12V-2000TA DDEC Diesel Deck Engine
760 bhp (567 kw) @ 1800 rpm
2 x 110 gallon (415 l) fuel tank
50' ft (15.24 M) head travel
200,000 lbf (890 kN) hoist capacity
100 fpm (30.5 m/min) hoist speed
32,000 lbf (142 kN) pulldown
200 fpm (61 m/min) pulldown speed
Table Opening: 30" inches (768 mm) diameter with table retracted
Hydraulically retractable slip box
Lifts drill pipe & casing from horizontal position into alignment with tilt top head
Racks and stores tubulars
Positions blowout preventer
47' ft (14.3 m) maximum tubular length, Range III Tower
30" inch (0.76 M) maximum diameter casing capability
5,000 lb (2,268 kg) tubular lift capacity
Up to 32,000 lbf (142 kN) pulldown
engine hours only 168 hours
total rig hours around 25,000
Range III tubular capability tower
Precise hydraulic weight on bit control
Compact 53 ft (16.2 m) transport length
Complete Drilling Package Sold Together:

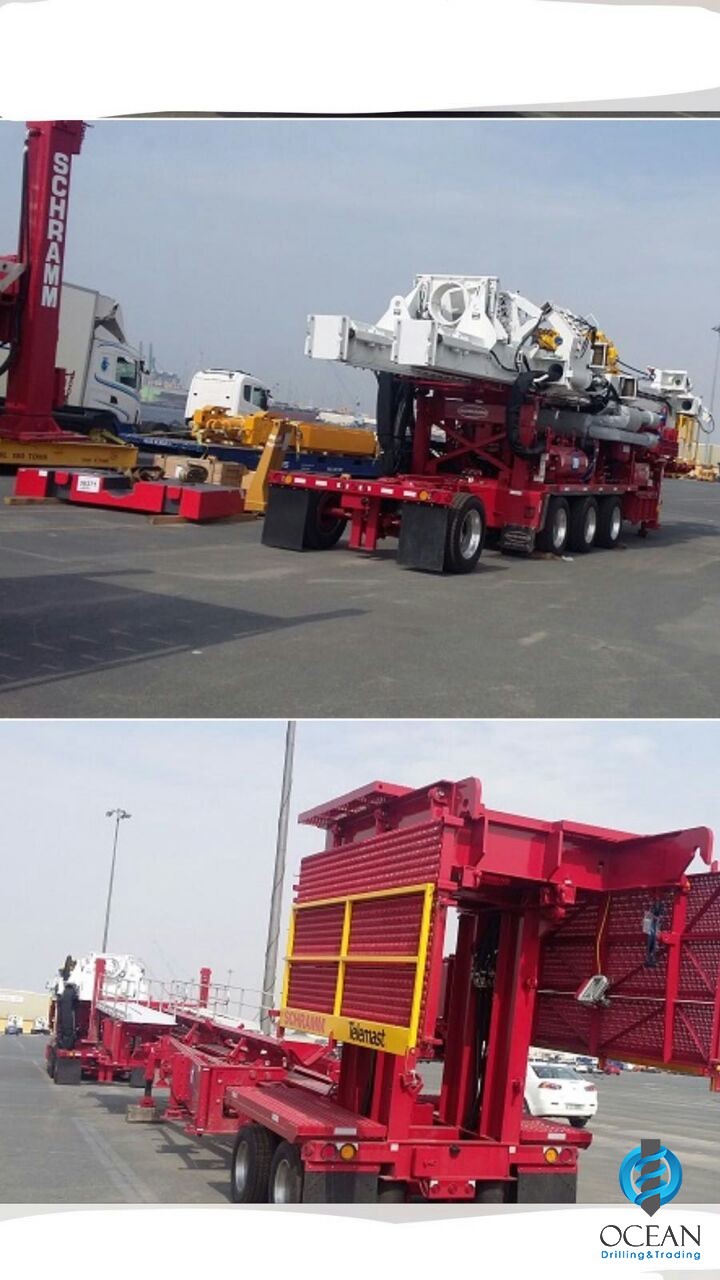

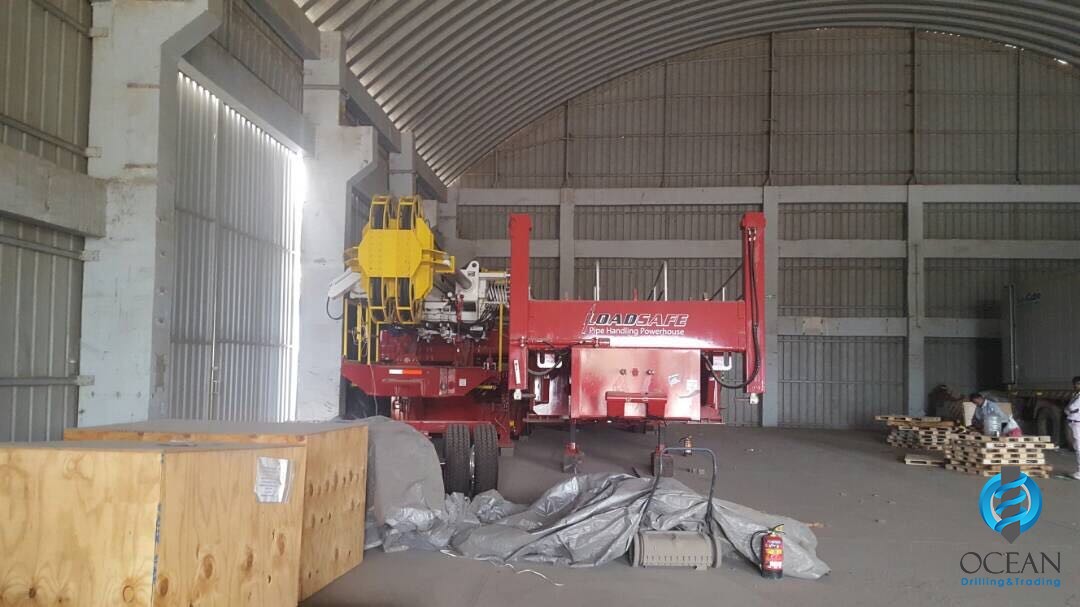

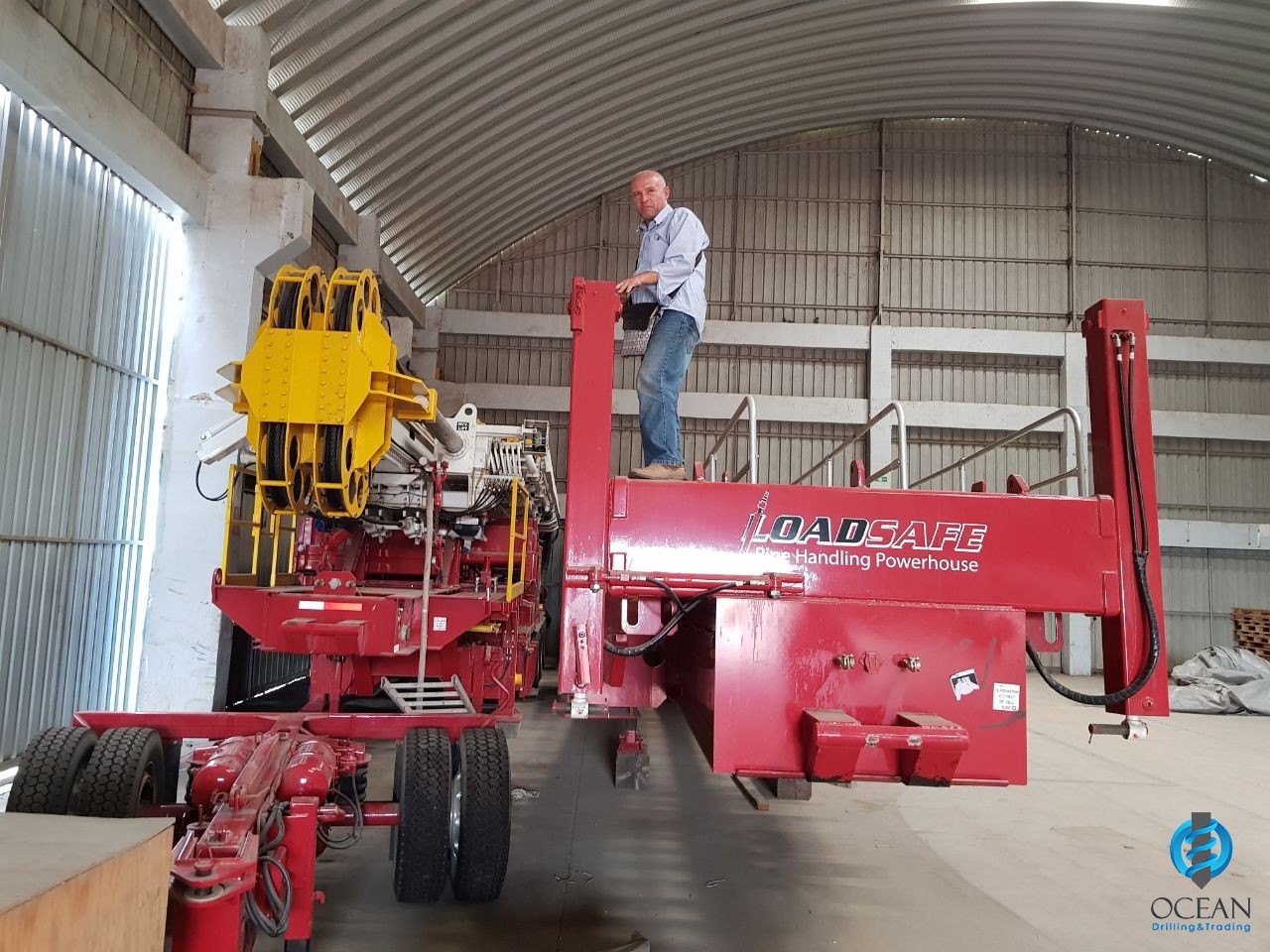

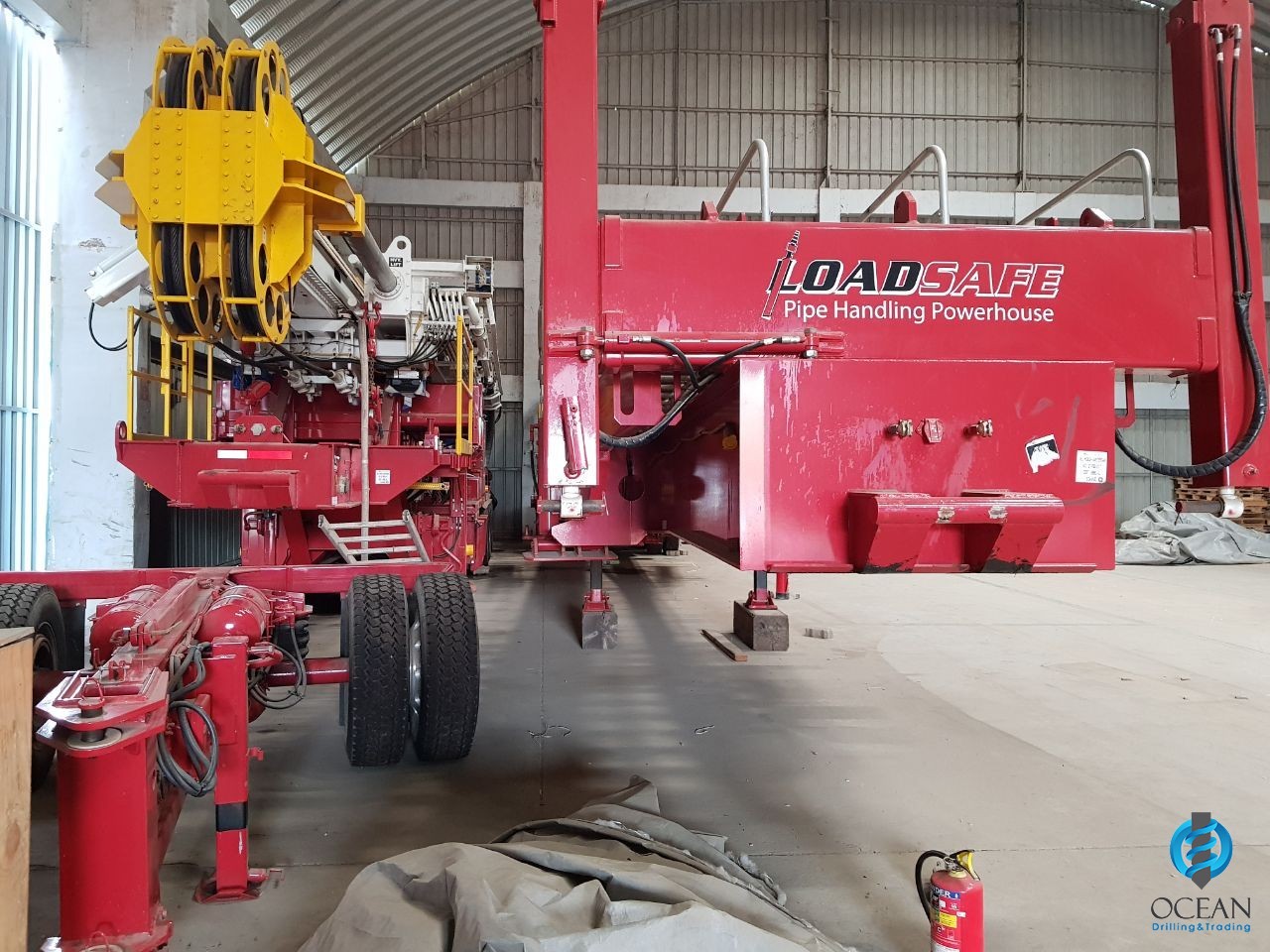

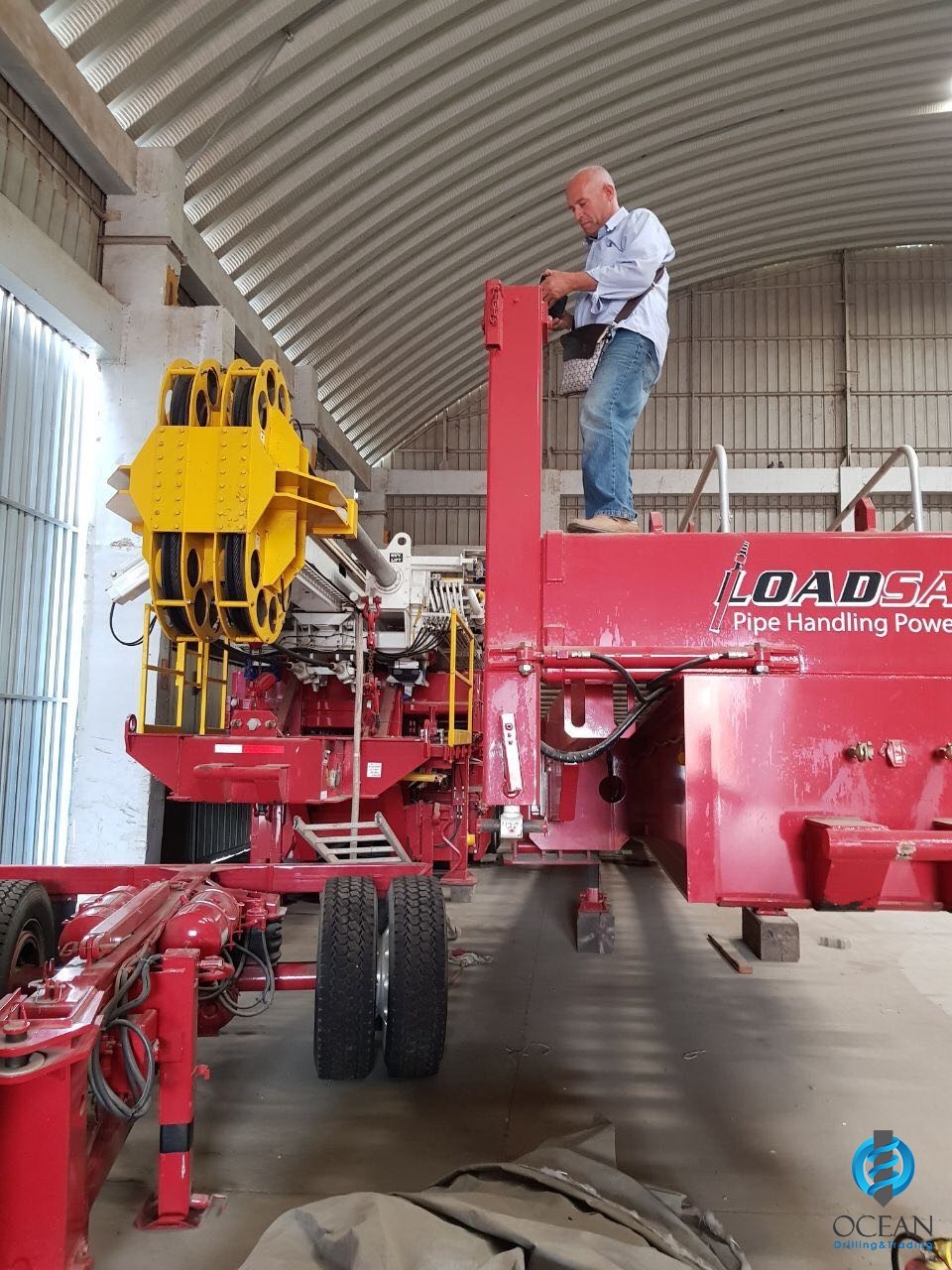

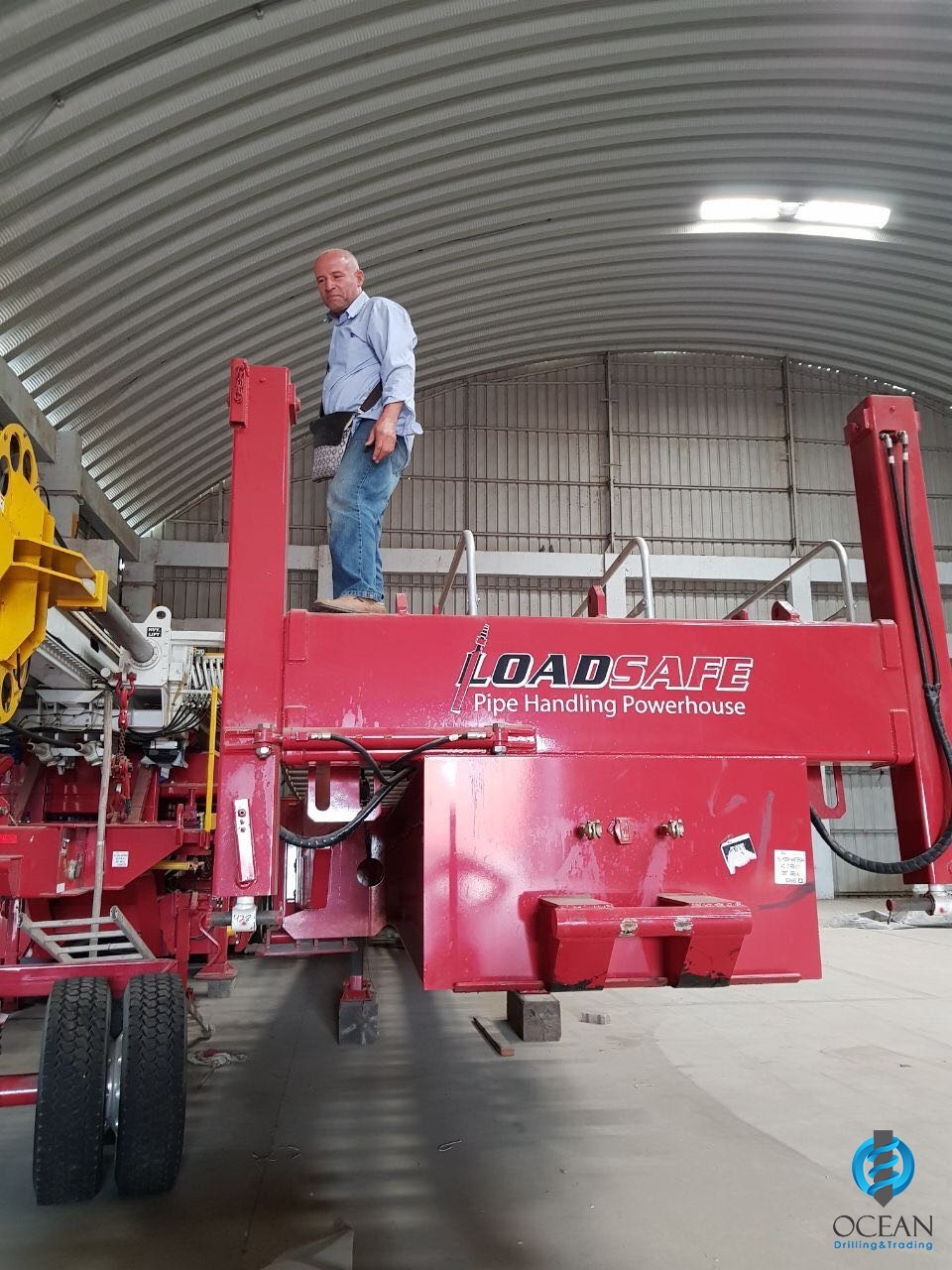

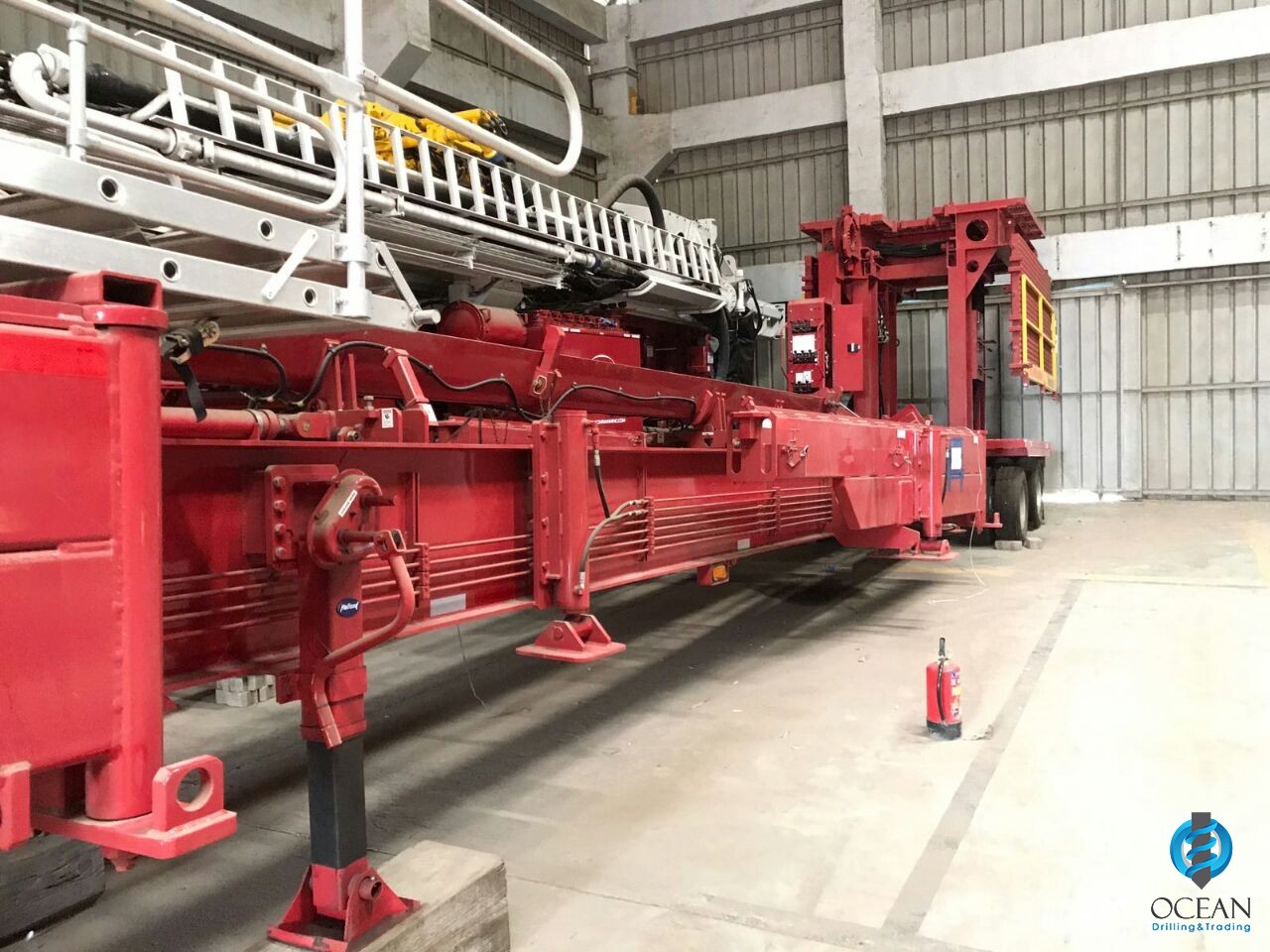

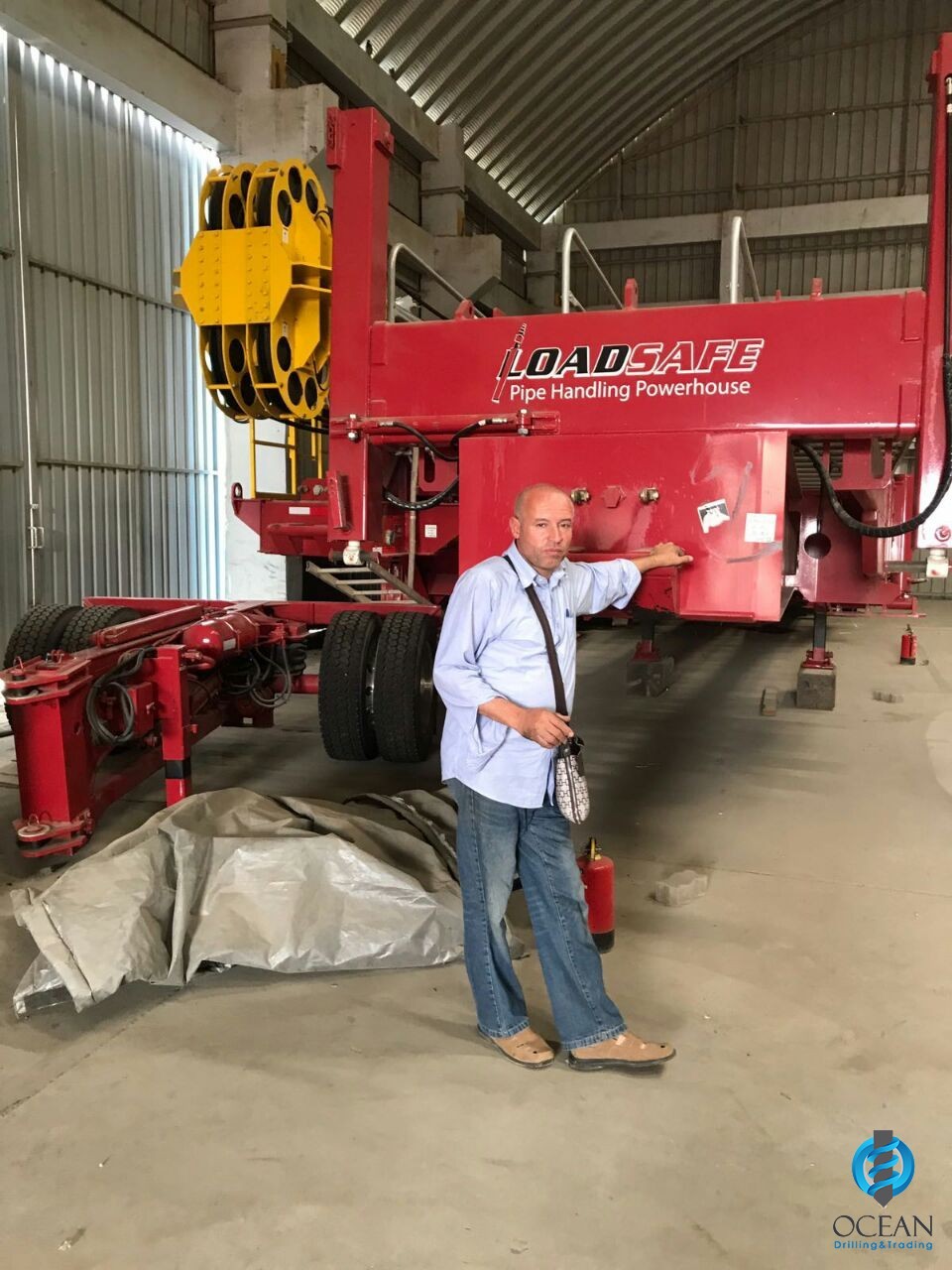

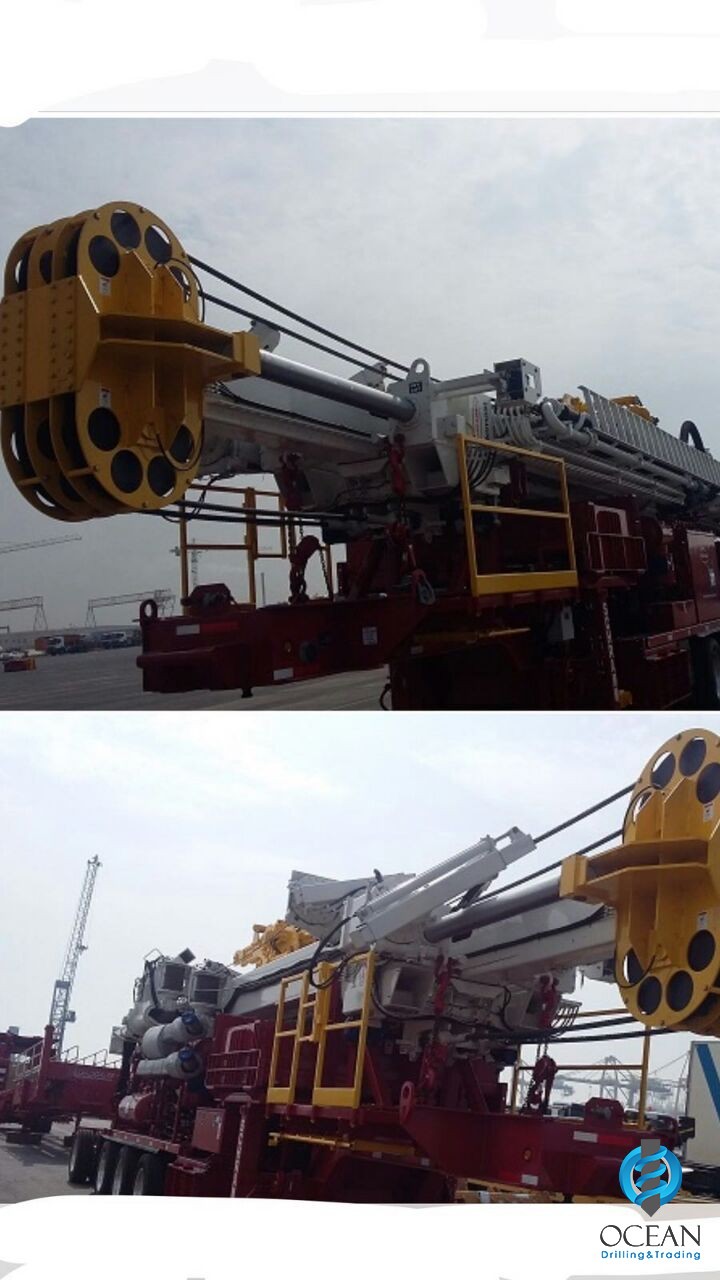

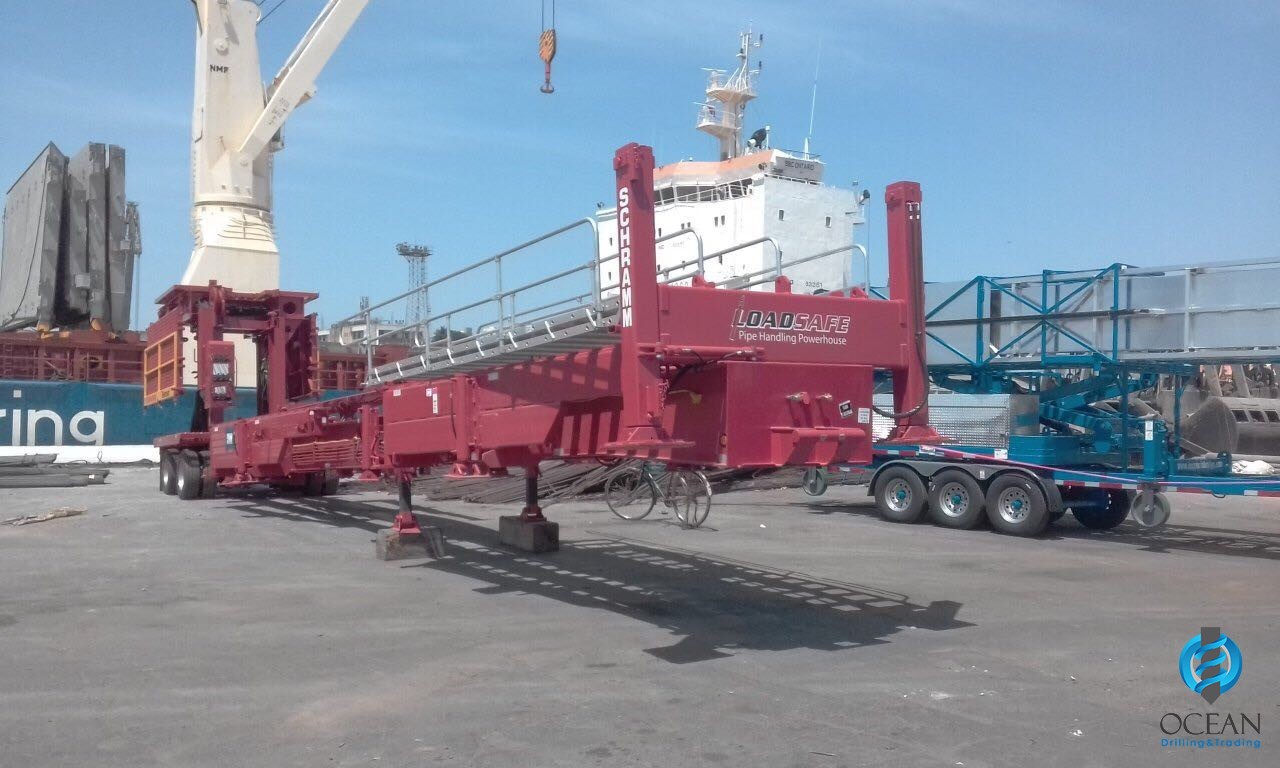

Trailer Mounted LoadSafe® automated pipe handling system
PZ-9 Triplex Mud Pump
Mud Tank
950 CFM / 350 PSI Air Compressor
A Wireline Unit
Dog House Mounted on a Trailer with Geolograph mounted inside & 100KW GeSet
Rolling Tail Board Trailer
